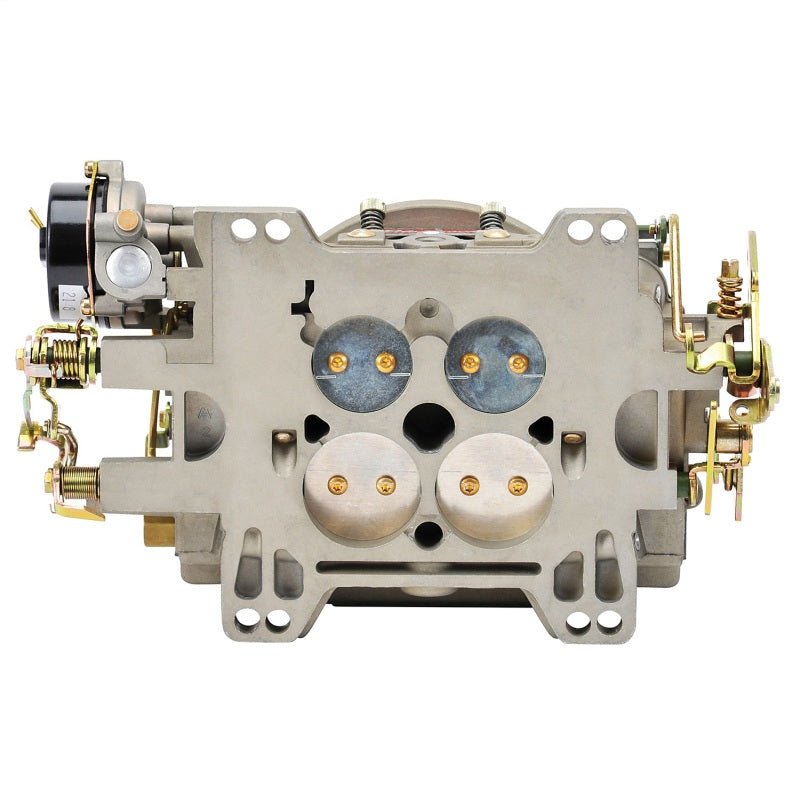

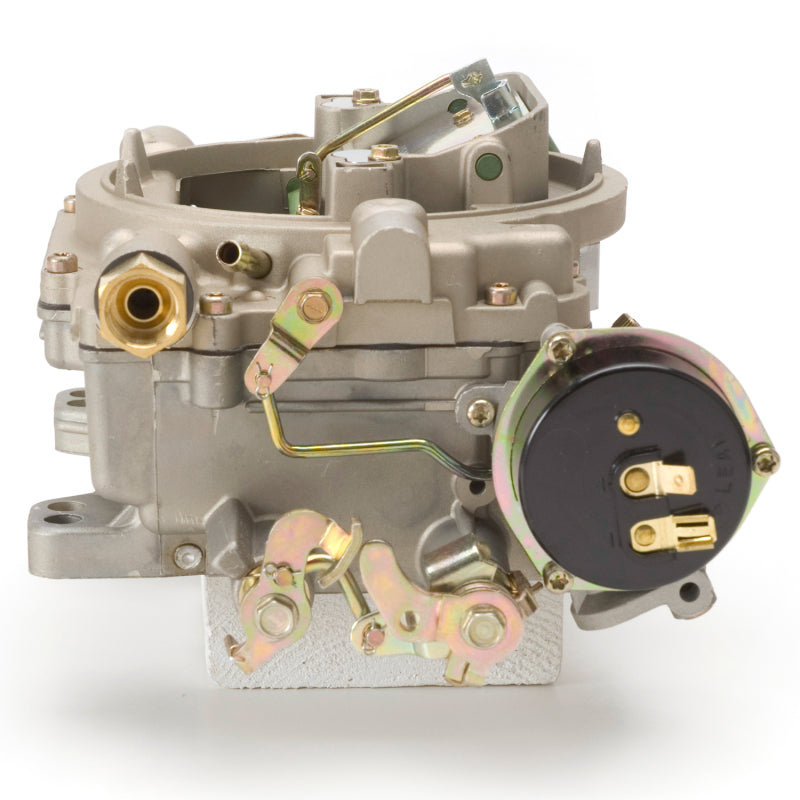

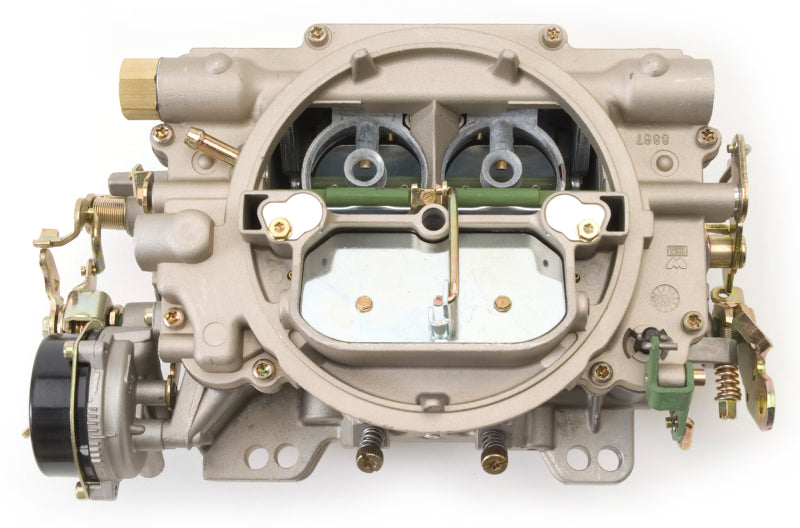

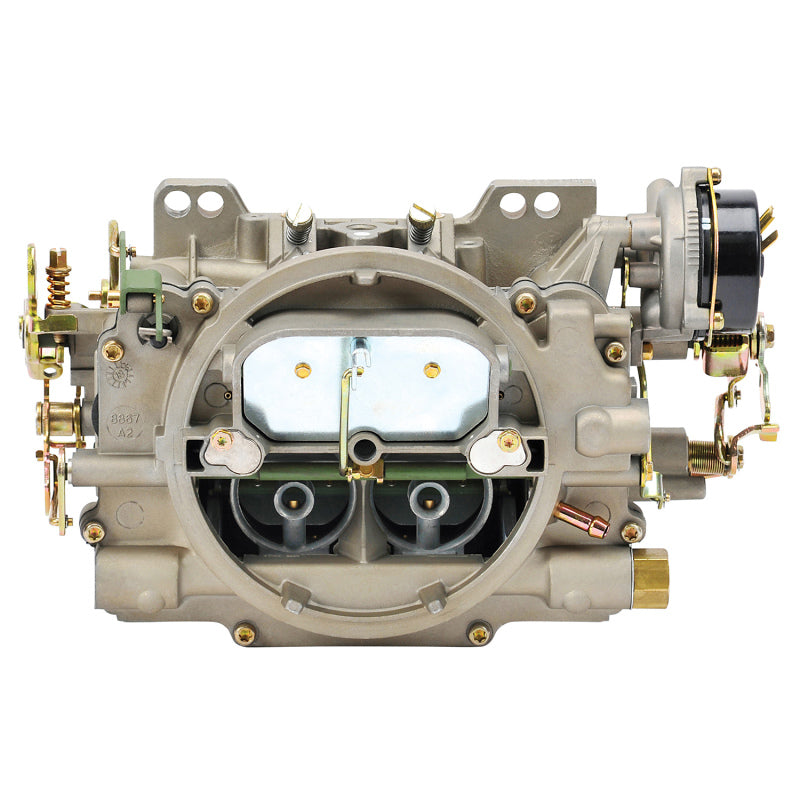

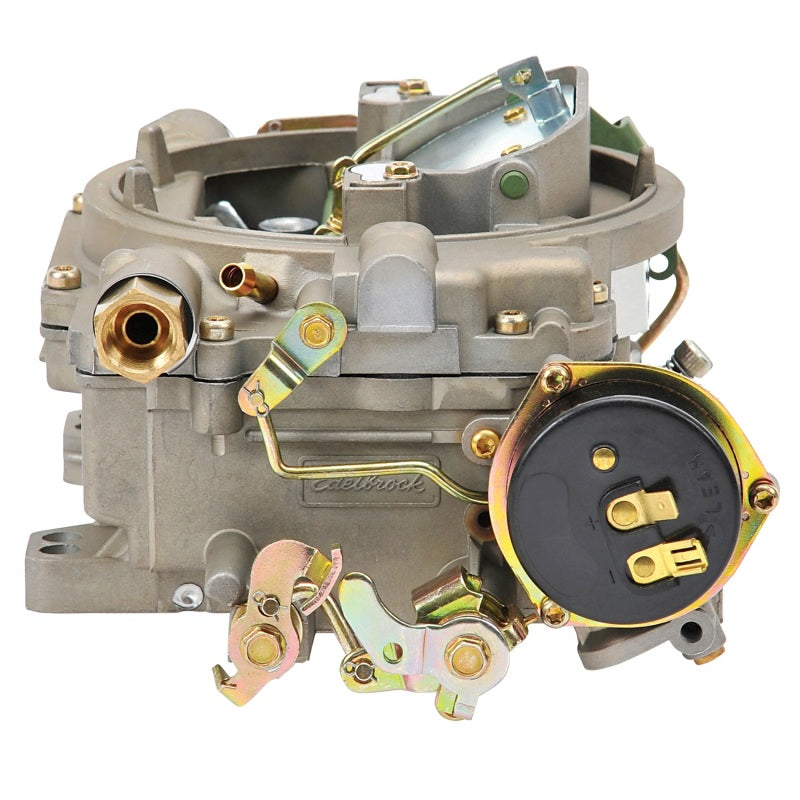

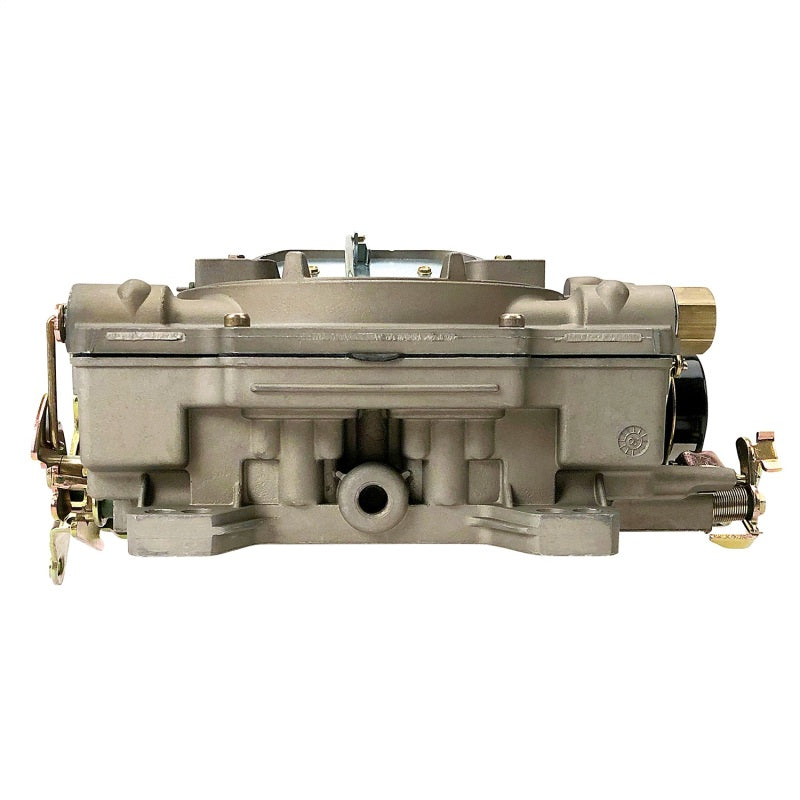

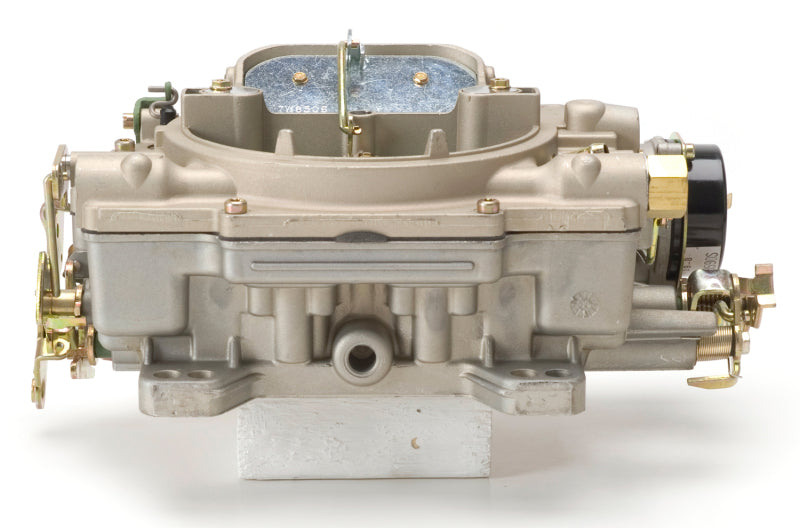

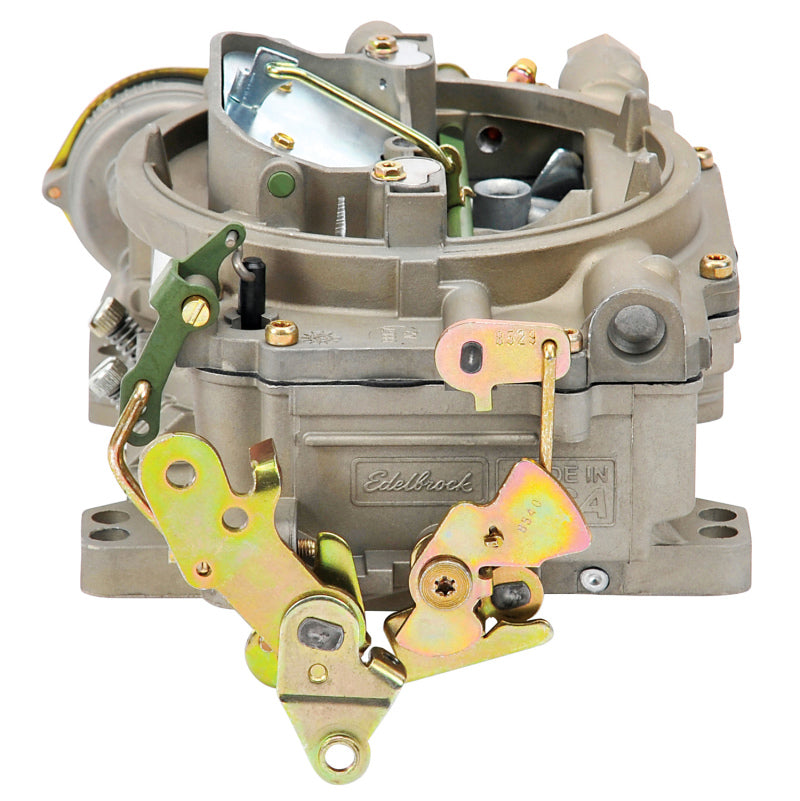

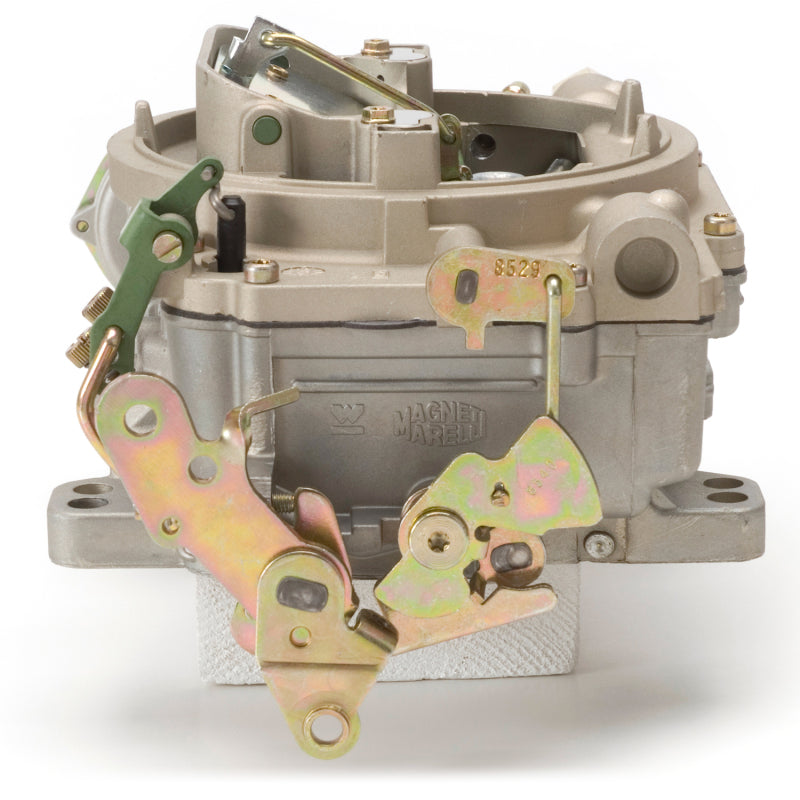

Marine Carb #1409 600 CFM With Electric Choke, Zinc-Dichromate Finish (Non-EGR) - Edelbrock - 1409
|Barrel Quantity||4 Barrel|

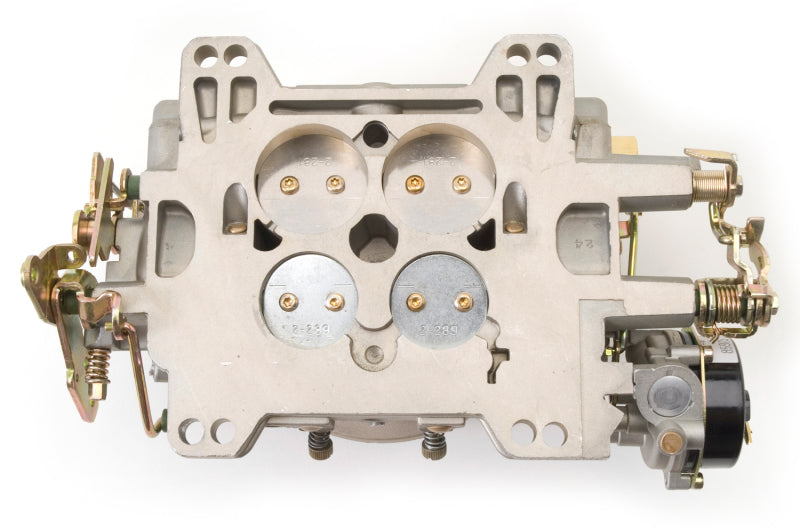

|Bore Diameter||Primary Bore 1.44; Secondary Bore 1.69|
|Description_EXT||Edelbrock Marine Series 600 cfm, Square-Flange, Electric Choke Carburetor (non-EGR)|
|Description_INV||Edelbrock Marine 600 CFM Carburetor|
|Description_LAB||Marine Carb #1409 600 CFM With Electric Choke, Zinc-Dichromate Finish (Non-EGR)|
|Description_MKT||The Edelbrock 1409 Marine Series 600 CFM electric choke carburetor is a precisely tuned, quality-built carburetor that can handle the harsh abuse only a marine environment can inflict. Several characteristics make the 1409 Marine Series 600 CFM electric choke carburetor an outstanding marine performer. The first one is that metering rods are utilized to transition between circuits. The carburetor is unaffected by engine backfires, which means that there are no power valves to blow out, and the rods can be changed in seconds without carburetor removal or fuel draining. Secondly, the carburetor has the unique ability to "hold a tune", so once it is tuned, the carburetor stay's tuned. What this means to you is that compared to other carburetors, the performance remains consistent and the calibration stays unchanged. The lightweight all-aluminum body features a two-piece body that is iridited and assembled with PTFE-coated shafts and pump arm for maximum protection. The simple tub-type bowls and rear-pivot floats all contribute to a carburetor that's reliable, user-friendly and is easily tunable for trouble-free operation.|
|Description_TRA||Edelbrock carburetors are not calibrated for or compatible with alcohol, race or E85 pump fuel. The use of alcohol or E85 in your Edelbrock carburetor will damage your carburetor and void your warranty. These fuels can also damage other fuel system components, unless specifically designed for use with alcohol fuels|
|Description_TRA||The use of a new fuel filter between the fuel pump and carburetor is required. Failure to do so will void the manufacturer's warranty of the carburetor|
|Description_TRA||Use calibration kit #1485 on 4.3L 90 Deg V6 with #2111 & #2114 manifold|

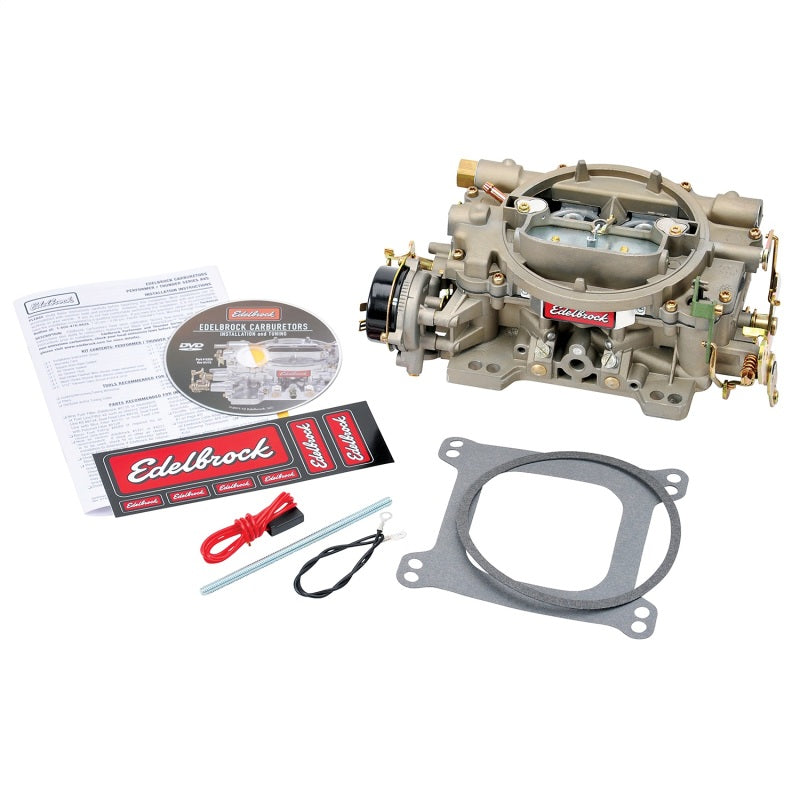

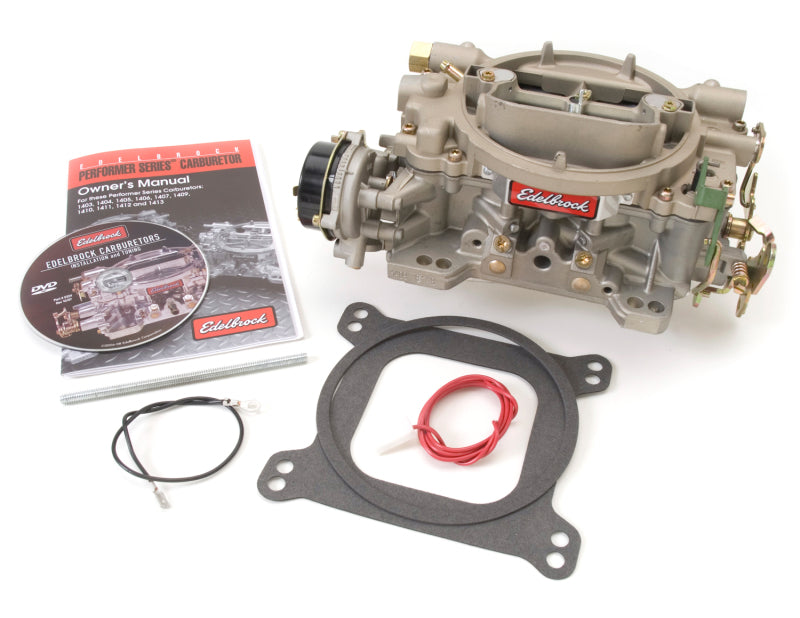

|Gasket Or Seal Included||Yes|
|Level1||Level 1: Fuel Delivery|
|Level2||Level 2: Carburetors|
|Main Venturi Diameter||1.19|
|Maximum Flow Rating||600|
|Metering Rod Size||.068 x .047|
|Primary Jet Diameter||0.098|
|RGL||WARNING: This product can expose you to Zinc, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.|
|Secondary Jet Diameter||0.101|
|Spring Force||5" Hg (Orange)|
