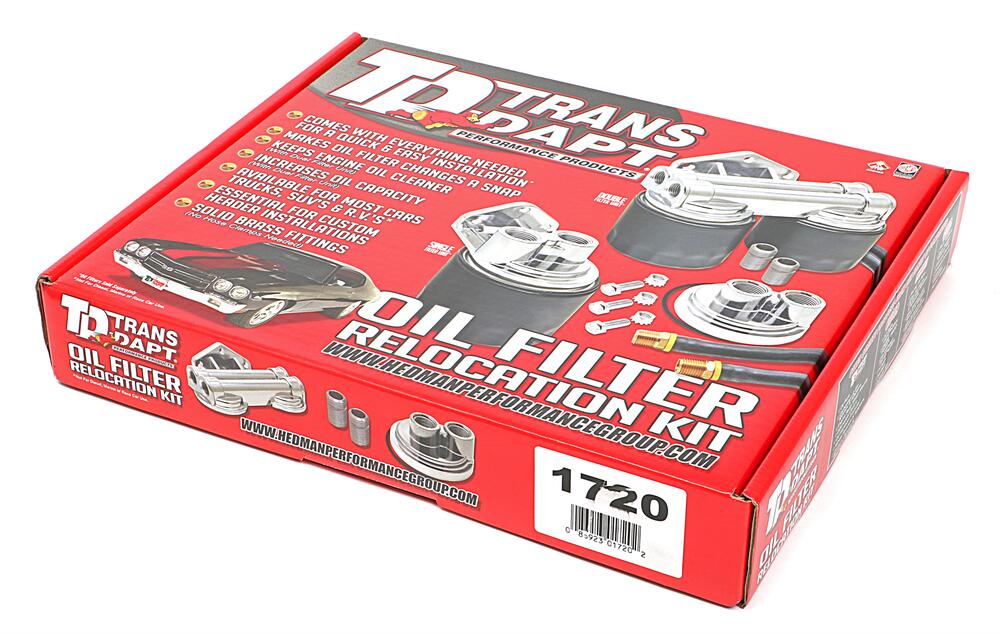

CAST ALUMINUM OIL FILTER RELOCATION KIT; 90 DEGREE BYPASS - Trans-Dapt Performance - 1720
Resources
Installation InstructionsResources
Installation InstructionsResources
Installation InstructionsResources
Installation InstructionsSpecifications:
Bypass Mounting Style | Spin-On |
California Proposition 65 | WARNING: Cancer & Reproductive Harm. For more info visit www.P65Warnings.ca.gov |

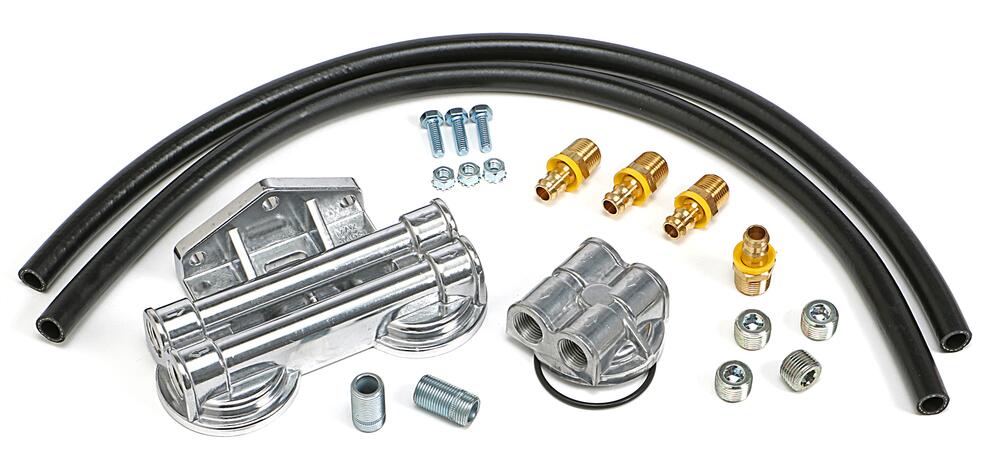

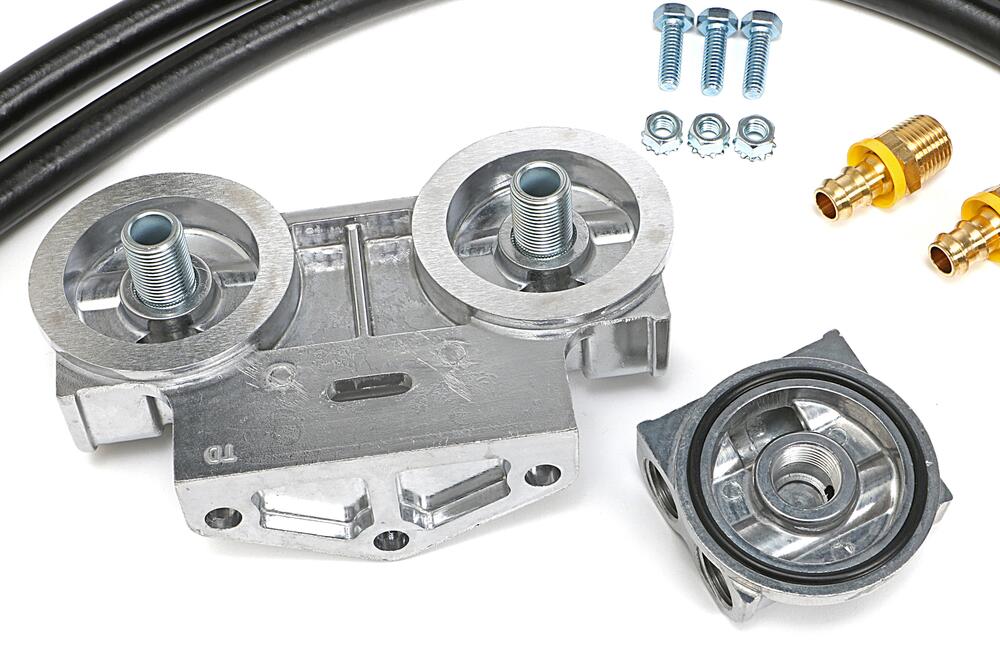

Contents | Filter Bypass Adapter, Remote Filter Base, Oil Lines, Fittings, Filter Nipple, Bypass o-ring |
Description_ASM | 2004-2005 Cadillac CTS 5.7 Liter, 2006 Cadillac CTS 6.0 Liter, 2002-2005 Cadillac Escalade 5.3 Liter, 2002-2006 Cadillac Escalade 6.0 Liter, 2002-2006 Cadillac Escalade EXT 6.0 Liter, 2005-2010 Cadillac STS 4.6 Liter, 2004-2009 Cadillac XLR 4.6 Liter |
Description_DEF | Engine Oil Filter Remote Mounting Kit |
Description_DES | CAST ALUMINUM OIL FILTER RELOCATION KIT; 90 DEGREE BYPASS |
Description_EXT | CAST ALUMINUM TRUE-DUAL DOUBLE OIL FILTER RELOCATION KIT; HORIZONTAL PORT, 90 (degree) FILTER BYPASS; 2-1/2 in. I.D., 2-3/4 in. O.D. OIL FILTER FLANGE; 13/16 in.-16 NIPPLE |
Description_INV | TRANS-DAPT OIL FILTER RELOCATION KIT |
Description_SHO | OIL RELOCATION KIT |
Filter Bypass Style | 90 Degree Port Filter Bypass |
Filter Nipple Thread Size | 13/16 in.-16 |
Fitting Material | Brass |
Fitting Quantity | 4 |
Fitting Type | Hose Barb |
For Use On | GM (B.O.P.C.) V8 & 99-06 LS SERIES |
Hose Connection Type | Push Lock |
Hose Length | 30 in. |
Kit Type | Double Filter Kits |
Level1 | Level 1: Engine |
Level2 | Level 2: Filters |
Material | Cast Aluminum |
Port Size | 1/2 in. NPT |
Port Style | Horizontal |
Remote Base Filter Size | PH8A (or equivalent) |
Replacement Nipple | 1034 |
Replacement O-Ring | 1042 |
Title | TRANS-DAPT PERFORMANCE PRODUCTS CAST ALUMINUM TRUE-DUAL DOUBLE OIL FILTER RELOCATION KIT; HORIZONTAL PORT, 90 (DEGREE) FILTER BYPASS; 2-1/2 IN. I.D., 2-3/4 IN. O.D. OIL FILTER FLANGE; 13/16 IN.-16 NIPPLE |
Vehicle Oil Filter Flange ID | 2-1/2 in. |
Vehicle Oil Filter Flange OD | 2-3/4 in. |
Vehicle Oil Filter Nipple Size | 13/16 in.-16 |
